Structural Truss Steel Pedestrian Overpass Bridge


Availability:

Quantity:



Inquire

Truss structure

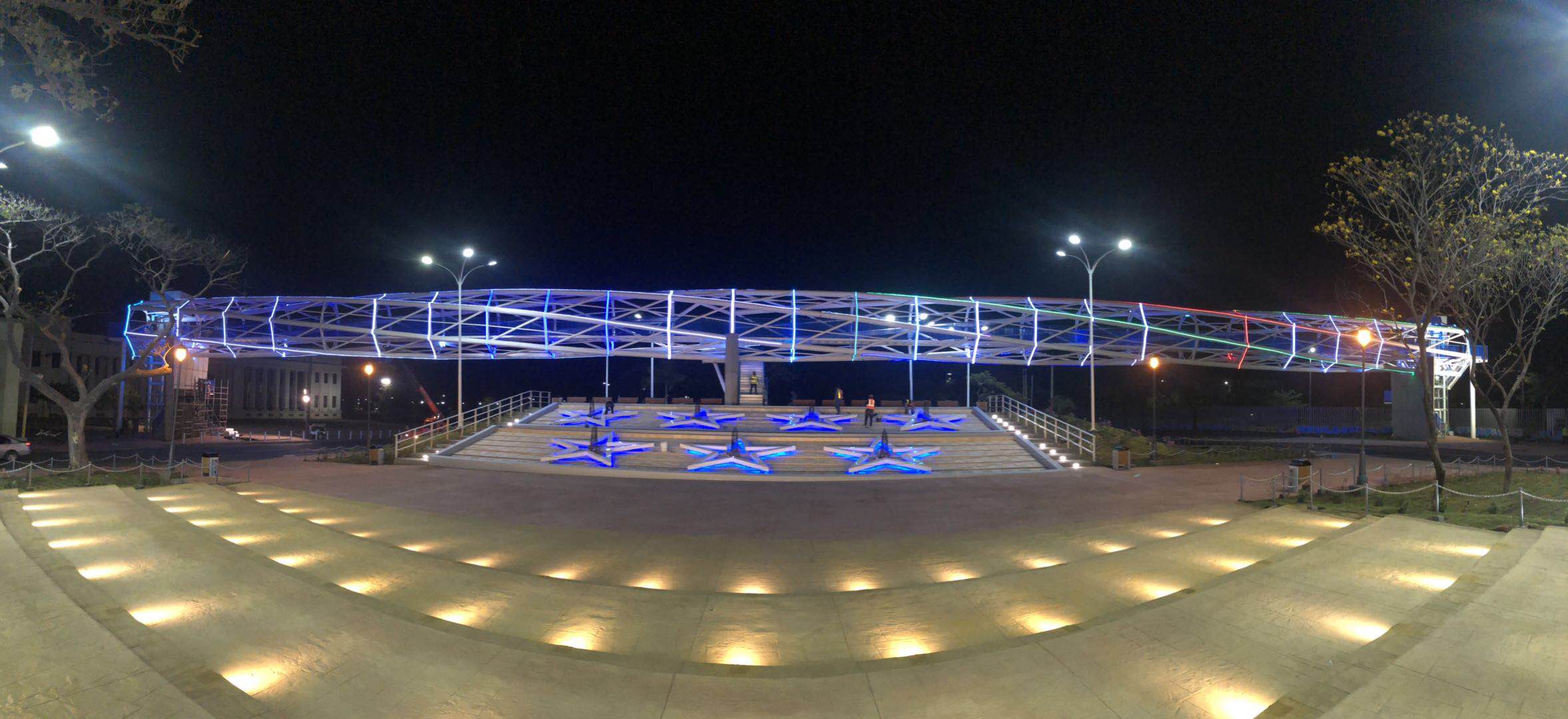

Nicaragua Bridge Steel Pedestrian bridge Pedestrian bridge

Arch space frame Building Dry Coal Storage shed

Case Description

Product Overview

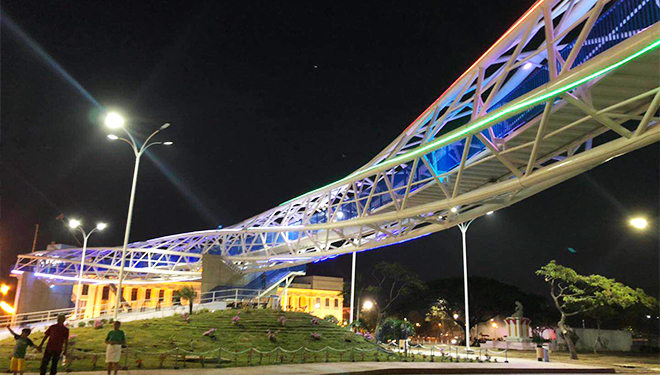

Structural Truss Steel Pedestrian Overpass Bridge is a prefabricated traffic infrastructure product, specially designed for safe and convenient pedestrian crossing over roads, railways and other obstacles. This product, with typical applications in Nicaragua and Iraq pedestrian bridge projects, adopts a three-dimensional steel pipe truss structure, which maximizes structural strength and stability while minimizing on-site welding and fabrication work. Different from traditional concrete pedestrian bridges, the steel truss structure of this product has the advantages of light weight, high load-bearing capacity and fast construction, which can effectively solve the problem of pedestrian traffic in areas with complex terrain or busy traffic.

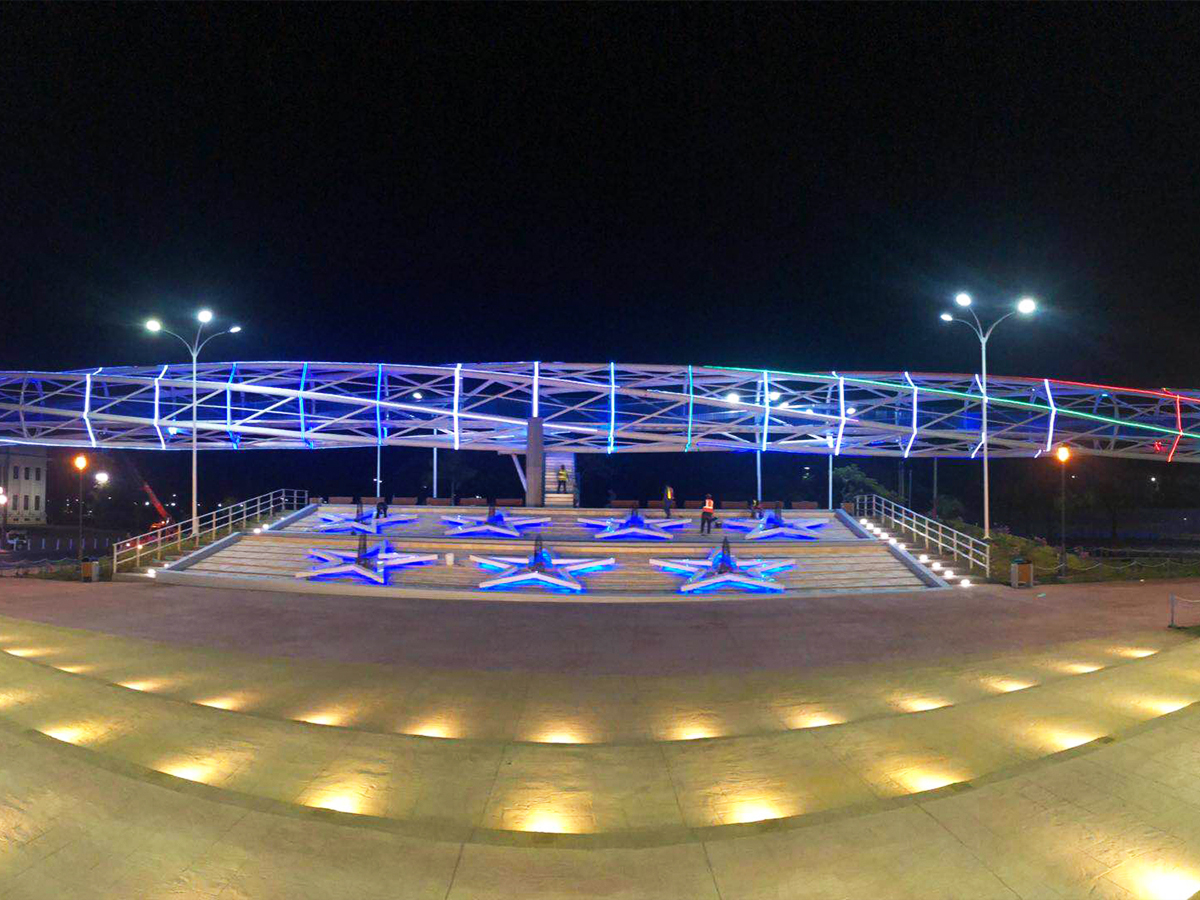

Structural Truss Steel Pedestrian Overpass Bridge

Key Application Scenarios

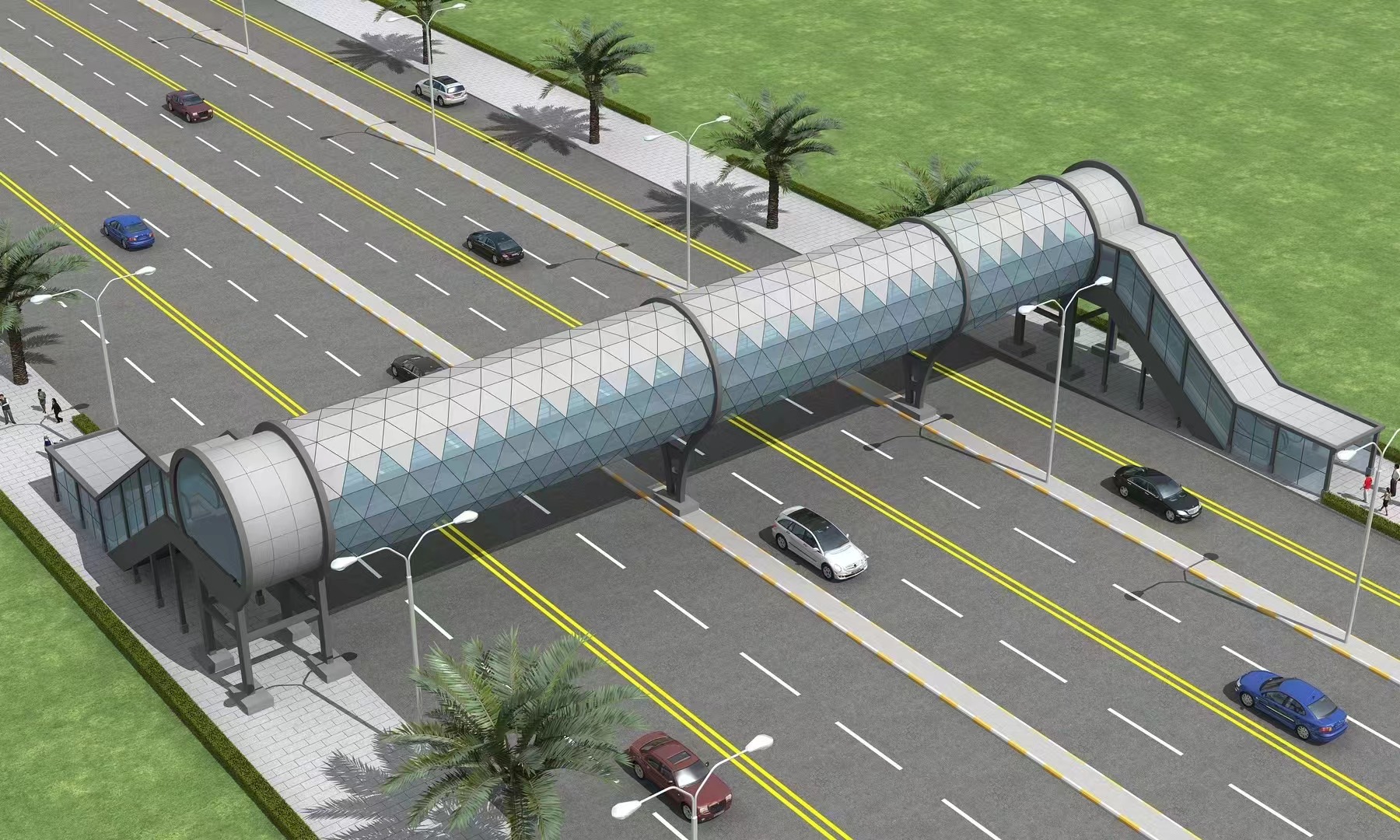

Urban Traffic Improvement Projects

It is widely used in urban areas where pedestrians need to cross busy roads, highways or railway lines. The stable truss structure can ensure the safety of pedestrians, and the prefabricated design can reduce the impact of construction on urban traffic.

Cross-border & Remote Area Projects

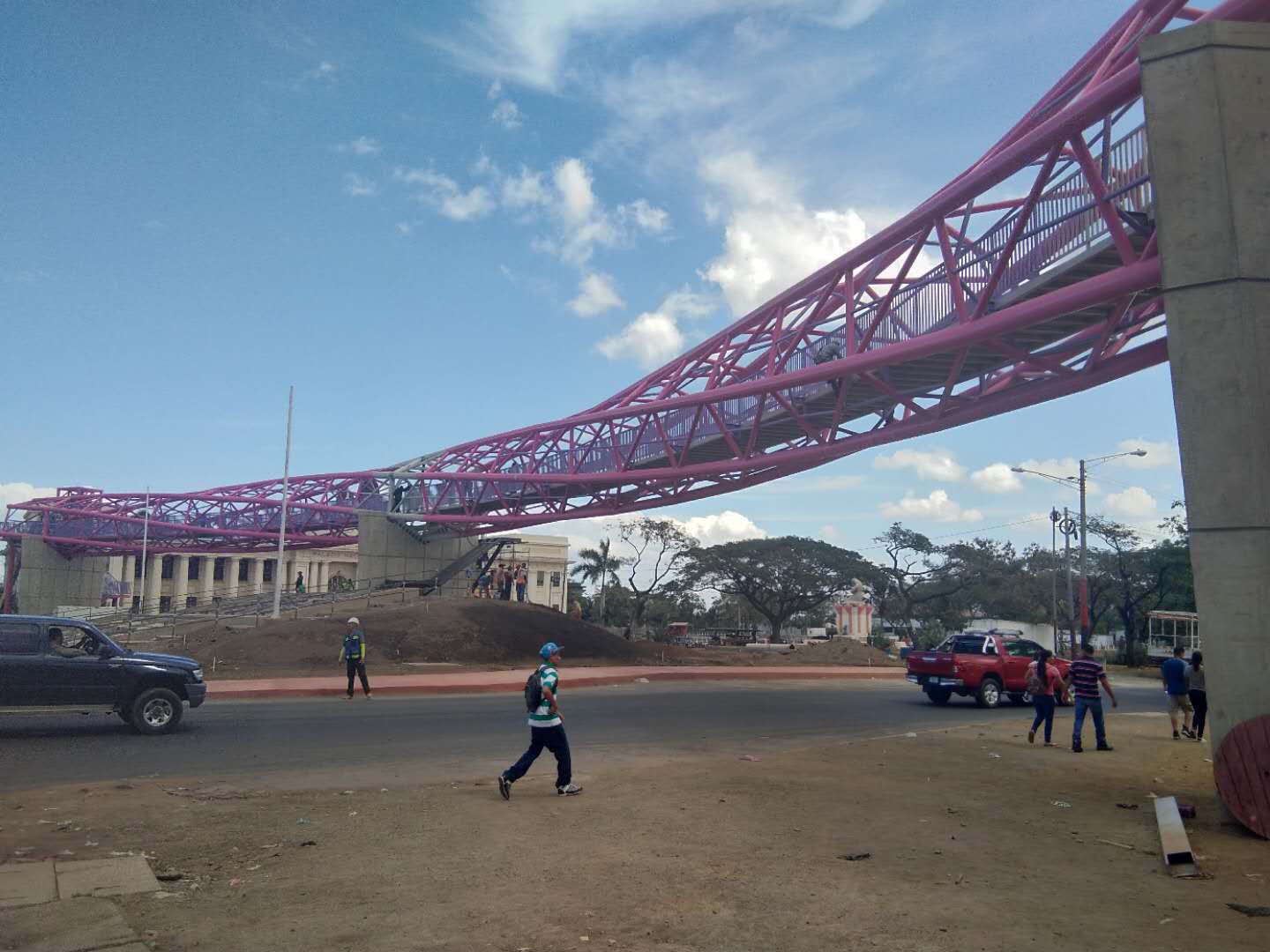

The product has been successfully applied in bridge projects in Nicaragua and Iraq, proving its adaptability to different climate and geographical environments. It is an ideal choice for infrastructure construction in remote areas.

Public Facility Supporting Projects

It can be matched with stadiums, exhibition halls and terminal buildings to provide safe pedestrian passage for large public places, improving the overall traffic efficiency of the area.

Industrial Zone Pedestrian Passage

In industrial parks or factory areas, this steel pedestrian bridge can connect different workshops or storage areas, ensuring the safety of employees crossing industrial roads and improving the internal operation efficiency of the park.

Technical Parameters

Item	Specification
Main Material	Mild Steel; Stainless Steel
Surface Coating	Spray Painting; Galvanization; Powder Coated
Optional Color	Blue; Green; Dark-gray; Customized per Client's Request
Steel Grade	Q235-B; Q345-B; Stainless Steel
Manufacturing Equipment	Advanced Automatic Welding Machines
Quality Control Certification	GB/T19001-2000; ISO9001:2000

Core Advantages

Safe & Durable Structure

The rigid truss structure composed of interconnected beams and bars provides strong load-bearing capacity, ensuring the safety of pedestrian passage. The product has a 50-year service life and high anti-rust performance, which can adapt to long-term outdoor use.

Prefabricated & Efficient Construction

The three-dimensional steel pipe truss is prefabricated off-site, which greatly reduces the on-site construction time and cost. The lightweight characteristics of steel materials also make transportation and installation more convenient, minimizing the disruption to the surrounding environment.

Flexible & Adaptive Design

The truss system design allows flexible adjustment according to the actual span and terrain of the project. It can adapt to various crossing needs, whether it is a short-distance urban road or a long-span railway crossing.

Cost-effective Operation

The product has low maintenance cost in the later period. The steel material is not easy to be damaged, and the surface coating can effectively prevent corrosion, reducing the frequency of maintenance and replacement.

Quality Control & Company Strength

Dual Inspection System: Raw Material + Finished Product

Raw Material Inspection: Implement three-step inspection including warehouse verification, physical and chemical quality sampling, and trial production test, ensuring that all raw materials meet the production standards.

Finished Product Inspection: Before leaving the factory, the product must pass four inspections: package integrity, mark correctness, appearance defect detection and performance test. Unqualified products will be reworked until they meet the standards.

Strong Production & Supply Capacity

The company has more than 10 precision production lines, which can realize large-scale batch production. The advanced automatic welding equipment ensures the consistency of product quality and meets the delivery needs of multiple projects at the same time.

Professional Technical R&D Team

The team has rich experience in steel truss structure design, and can provide customized solutions according to the specific geographical conditions and functional needs of customers, ensuring the rationality and safety of the bridge design.

Service & Call to Action

Comprehensive Service System

7*24 Hours After-sales Service: The professional after-sales team solves the problems encountered by customers in the process of installation and use in the first time, ensuring the normal operation of the bridge.

Customized Design Support: According to the project's span, load and terrain requirements, the technical team provides one-stop design, production and installation guidance services.

Competitive Price Advantage: Large-scale production reduces the unit cost of products, providing customers with high-quality infrastructure solutions at a reasonable price.

Call to Action

If you are planning a pedestrian crossing infrastructure project and need a safe, durable and cost-effective steel truss bridge solution, please submit your inquiry now. Our team will provide you with a detailed project plan and quotation in the shortest time to help your project complete smoothly.

Case Advantages

Good quality, completely consistent with the seller's description, very satisfied, really like it, completely beyond expectations, the delivery speed is very fast, the packaging is very careful and strict, the service attitude of the logistics company is very good, the delivery speed is very fast, very satisfied with a shopping.

7*24 Hours Service

Have an excellent after-sales service team to ensure that the first time to solve customer after-sales problems.
Professional Techincal Team

We have an excellent technical team, which can be designed according to customers requirements.
Reasonable Price

More than 10 precision production line, easy to realize large quantities of goods, to provide you with the best price.

Pedestrian bridges

A structural truss steel pedestrian overpass bridge is a type of bridge that is designed to provide a safe and convenient way for pedestrians to cross over a road or other obstacle.

Beams&columns

The bridge is constructed using a series of steel trusses, which are rigid structures made up of interconnected beams and bars. These trusses provide the bridge with the strength and stability needed to support the weight of pedestrians as they walk across.

Other similar project references

Raw materials inspections in factory include there aspects:
①Warehouse inspection: check whether the name, specification, model and quantity of raw materials are correct,it will be completed by the staff in warehouse.
②Quality inspection: check whether the physical and chemical qualities of raw materials conform to the relevant inspection regulations on the raw material,usually in sampling inspection way.
③Test inspection:take some test samples for production to check whether the results are in accord with requirements.

Iraq bridge

The finished product must be inspected before leaving the factory, so as to make sure products without defect and customer satisfied without complaint.
Inspection items include:
①Finished product package inspection:
②Identification inspection: whether the mark is correct.
③Appearance inspection: whether the appearance is damaged, cracked, scratched, etc.
④Performance test of finished products.
If qualified in batch, the products shall be released. If unqualified, they shall be reworked or repaired in time until the inspection is qualified.
