Bangladesh Grid Coal Shed Curved Double Layer Grid Structure Space Frame

You are here: Home » Products » Space Frame » Bangladesh Grid Coal Shed » Bangladesh Grid Coal Shed Curved Double Layer Grid Structure Space Frame

Bangladesh Grid Coal Shed Curved Double Layer Grid Structure Space Frame


Availability:

Quantity:



Inquire

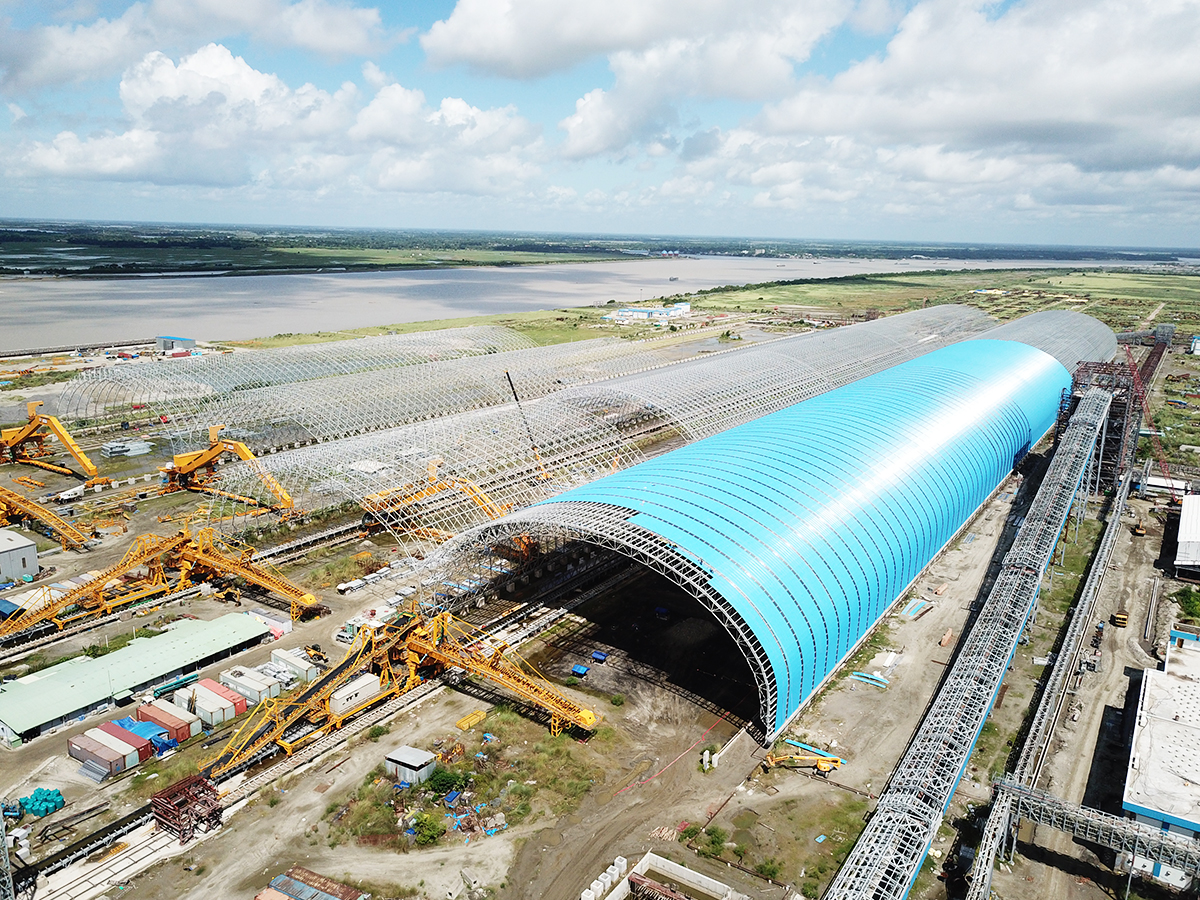

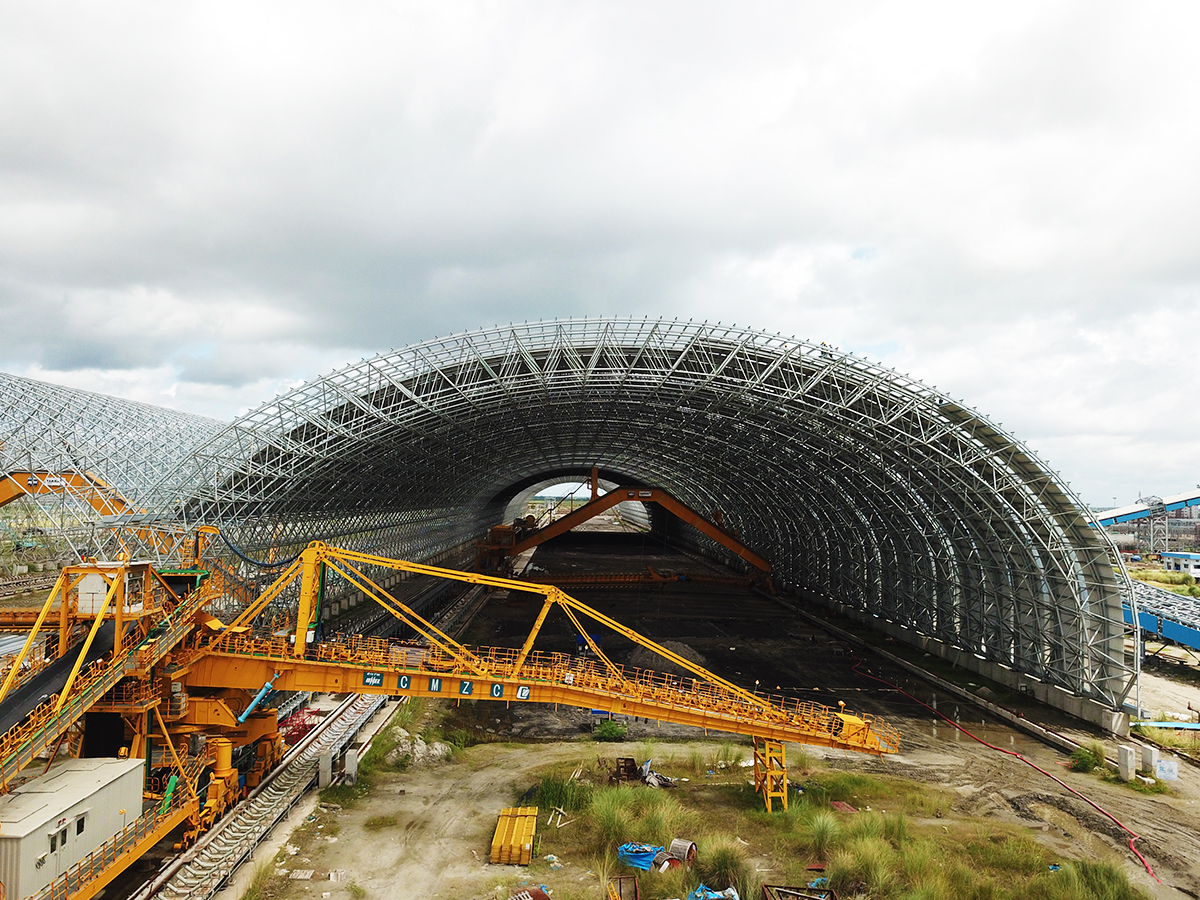

The size of a single grid: 138 meters long, 167.1 meters wide, and 31 meters high The structural form is a square-angled cone bolted spherical joint grid frame The roof is closed with single-laminated steel plate 0.6mm thick 840 type sea blue color steel plate + FRP daylighting board

Bangladesh grid coal shed grid structure curved space frame double layer space frame

Arch space frame Building Dry Coal Storage shed

Case Description

Product Overview

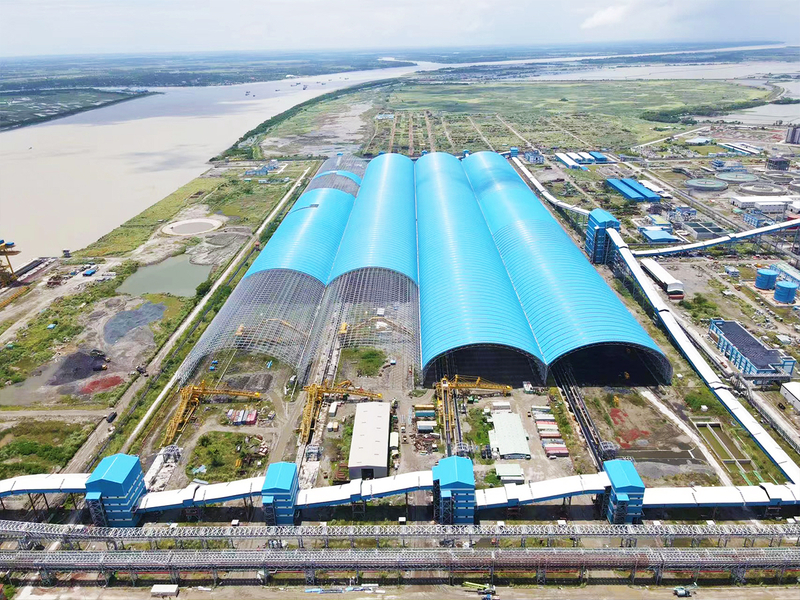

The Bangladesh Grid Coal Shed is a large-scale dry coal storage facility engineered with a curved double layer grid structure and forward-placed quadrangular cone bolted spherical joint space frame. This project boasts an impressive total projection area of 250,100 square meters and an expanded area of 320,000 square meters, with a coal storage capacity of 3.1 million tons. Each single coal shed unit features a span of 84 meters, a net length of 138 meters and a net height of 31 meters, perfectly meeting the massive storage demands of the coal industry. The roof is sealed with 0.6mm thick 840-type sea blue single-laminated steel plates combined with FRP daylighting boards, which not only ensures structural tightness but also enhances natural lighting efficiency inside the shed. The steel structure support of the coal shed has a roof elevation of 1.500m, and the foundation design and construction are undertaken by the construction party, ensuring the overall stability of the project. As a typical application of grid structure space frame in bulk material storage, this coal shed integrates strength, durability and practicality, becoming a benchmark project in the field of coal storage infrastructure.

Bangladesh Grid Coal Shed

Key Application Scenarios

Core Scenario: Large-Scale Dry Coal Storage

The product is specially designed for large coal storage bases, power plant supporting coal yards and bulk cargo terminals. Its large span and high space design can effectively accommodate a large amount of coal, reduce material accumulation loss, and realize safe and environmentally friendly dry storage of coal.

Extended Application Scenarios

Warehousing & Logistics Centers: The stable double layer grid structure can be used to build large-span logistics warehouses, adapting to the storage and turnover needs of various goods.

Exhibition Halls & Stadiums: The aesthetic and flexible grid frame design is suitable for constructing large exhibition venues and sports facilities, providing wide and unobstructed interior spaces.

Special-Shaped Buildings: The bolted spherical joint design supports customized structural shapes, meeting the architectural needs of various special-shaped engineering projects.

Technical Parameters

Parameter Category	Detailed Specifications
Material	Mild Steel; Stainless Steel
Coating	Spray Painting; Galvanization; Powder Coated
Color	Blue; Green; Dark-gray; Customized per Client's Request
Steel Code	Q235-B; Q345-B; Stainless Steel Grade
Fabrication Equipment	Advanced Automatic Welding Machines
Quality Control Standard	GB/T19001-2000; ISO9001:2000
Single Unit Size	Length 138m, Width 167.1m, Height 31m
Structural Form	Forward-placed Quadrangular Cone Bolted Spherical Joint Grid
Roof Material	0.6mm 840-type Sea Blue Single-laminated Steel Plate + FRP Daylighting Board

Core Advantages

Stable Structure & Long Service Life

The curved double layer grid structure has strong load-bearing capacity and seismic performance, and the service life of the whole structure can reach 50 years, ensuring long-term stable operation of the coal shed.

Fast Installation & Cost Saving

The prefabricated components of the grid frame realize off-site processing and on-site assembly, minimizing on-site welding work. This can significantly shorten the construction period and reduce the overall project cost and site management difficulty.

High Anti-Rust Performance & Environmental Adaptability

Multiple coating processes including galvanization and powder coating are adopted, which greatly improves the anti-corrosion and anti-rust ability of the steel structure, and can adapt to various harsh natural environments.

Flexible Layout & Strong Practicality

Doors and daylighting roofs can be installed at any position according to the actual needs. This flexible composition design improves the ventilation and lighting conditions inside the shed and enhances the operational convenience of the coal shed.

Quality Control & Company Strength

Strict Quality Control Process

Raw Material Inspection: The inspection is divided into three links: warehouse inspection, quality inspection and test inspection. Warehouse inspection verifies the name, specification, model and quantity of raw materials. Quality inspection adopts sampling method to test the physical and chemical properties of raw materials. Test inspection takes samples for trial production to ensure that the raw materials meet the production requirements.

Finished Product Inspection: Before leaving the factory, the finished products must pass package inspection, identification inspection, appearance inspection and performance test. Unqualified products will be reworked or repaired in time until they pass the inspection.

Strong Company Strength

Professional Technical Team: The company has an excellent R & D and design team, which can carry out personalized structural design according to the specific needs of customers.

Large-Scale Production Capacity: It has more than 10 precision production lines, which can realize mass production of grid frame components and provide customers with high-quality products at reasonable prices.

Service & Call to Action

Comprehensive After-Sales Service

The company provides 7*24 Hours Service, with a professional after-sales team to respond to and solve customers' after-sales problems for the first time, ensuring the smooth operation of the project.

Call to Action

Are you looking for a reliable large-scale coal storage facility solution? The Bangladesh Grid Coal Shed curved double layer grid structure is your ideal choice. It has the advantages of stable structure, long service life and flexible layout. Contact us now to inquire about detailed product parameters, quotation and customization services. Let us provide you with high-quality grid structure solutions for your infrastructure projects.

Case Advantages

grid structure is a framework made up of intersecting horizontal and vertical lines that create a series of squares or rectangles. Grid structures are commonly used in architecture, urban planning, graphic design, and web design to provide organization, order, and consistency. Grid structures help to create a sense of balance and harmony in a design by providing a framework for arranging elements in a systematic way. They can also help to guide the eye and create a sense of hierarchy within a design.

7*24 Hours Service

Have an excellent after-sales service team to ensure that the first time to solve customer after-sales problems.
Professional Techincal Team

We have an excellent technical team, which can be designed according to customers requirements.
Reasonable Price

More than 10 precision production line, easy to realize large quantities of goods, to provide you with the best price.

Project introduction

Total size of coal shed Length: 690 meters Width: 335 meters

Each dry coal shed has a single span of 84m, with a net length of 138m and a net height of 31m.

The roof is closed with single-laminated steel plate 0.6mm thick 840 type sea blue color steel plate + daylighting board.

The elevation of the roof of the coal shed steel structure support is 1.500m. The construction party is responsible for the design and construction of the coal shed foundation.

Project scale

Project scale: Projection area is about 250100㎡

Expanded area 320,000 square meters 3,100,000 tons of coal reserves

Structural form: forward-placed quadrangular cone bolted ball joint grid Grid support form: column point support

Onsite supervision

Raw materials inspections in factory include there aspects:
①Warehouse inspection: check whether the name, specification, model and quantity of raw materials are correct,it will be completed by the staff in warehouse.
②Quality inspection: check whether the physical and chemical qualities of raw materials conform to the relevant inspection regulations on the raw material,usually in sampling inspection way.
③Test inspection:take some test samples for production to check whether the results are in accord with requirements.

Ready for deliver products

The finished product must be inspected before leaving the factory, so as to make sure products without defect and customer satisfied without complaint.
Inspection items include:
①Finished product package inspection:
②Identification inspection: whether the mark is correct.
③Appearance inspection: whether the appearance is damaged, cracked, scratched, etc.
④Performance test of finished products.
If qualified in batch, the products shall be released. If unqualified, they shall be reworked or repaired in time until the inspection is qualified.
